Pulseq Import Demo#
Pulseq Import Demo¶
Generate a Cartesian multi-echo spin-echo .seq file, synthesize a small T2 phantom, import the simulated k-space through MRax, and fit a T2 model. The notebook writes temporary artifacts under tmp/pulseq_t2_notebook.
Environment and helpers¶
The sequence writer uses pypulseq, which is installed with MRax. The helper functions below generate a tiny sequence and phantom directly in the notebook so no external data files are needed.
[1]:
from pathlib import Path
import json
import jax.numpy as jnp
import numpy as np
import matplotlib.pyplot as plt
from mrax.core.loss_builder import run_fit
from mrax.io.pulseq_import import load_pulseq_experiment, read_pulseq
from mrax.library.default_models import make_t2_se_model
from mrax.reco.pipeline import cartesian_fft
def _build_t2_phantom(nx: int, ny: int) -> dict[str, jnp.ndarray]:
xg, yg = jnp.meshgrid(
jnp.linspace(-1.0, 1.0, nx),
jnp.linspace(-1.0, 1.0, ny),
indexing="ij",
)
r2 = xg**2 + yg**2
amplitude = 0.85 + 0.25 * jnp.exp(-2.0 * r2)
t2 = 35.0 + 55.0 * (0.5 + 0.5 * jnp.cos(np.pi * yg)) * (0.7 + 0.3 * jnp.exp(-1.5 * r2))
bias = 0.01 * jnp.sin(np.pi * xg) * jnp.cos(np.pi * yg)
return {
"amplitude": amplitude.astype(jnp.float32),
"t2": t2.astype(jnp.float32),
"bias": bias.astype(jnp.float32),
}
def write_multi_echo_spin_echo_seq(
seq_path: Path,
echo_times_ms: list[float],
*,
tr_ms: float,
matrix_shape: tuple[int, int],
fov_m: float = 0.20,
readout_time_ms: float = 3.2,
) -> None:
try:
from pypulseq import Opts, Sequence, make_adc, make_block_pulse, make_delay, make_trapezoid
except ImportError as exc:
raise RuntimeError("Install MRax with `pip install mrax` to run the Pulseq sequence writer.") from exc
n_phase, n_read = int(matrix_shape[0]), int(matrix_shape[1])
system = Opts(
max_grad=32,
grad_unit="mT/m",
max_slew=130,
slew_unit="T/m/s",
rf_ringdown_time=20e-6,
rf_dead_time=100e-6,
adc_dead_time=20e-6,
)
sequence = Sequence(system)
sequence.set_definition("Name", "t2_mse_cartesian_demo")
sequence.set_definition("SequenceName", "mse")
sequence.set_definition("ProtocolName", "pulseq_t2_cartesian_demo")
sequence.set_definition("TE", [float(te) for te in echo_times_ms])
sequence.set_definition("TR", float(tr_ms))
sequence.set_definition("Matrix", [n_read, n_phase])
sequence.set_definition("FOV", [float(fov_m), float(fov_m)])
rf90 = make_block_pulse(
flip_angle=np.pi / 2.0,
duration=1e-3,
delay=system.rf_dead_time,
system=system,
use="excitation",
)
rf180 = make_block_pulse(
flip_angle=np.pi,
duration=1e-3,
delay=system.rf_dead_time,
system=system,
use="refocusing",
)
delta_k = 1.0 / float(fov_m)
readout_width = n_read * delta_k
readout = make_trapezoid(
channel="x",
flat_area=readout_width,
flat_time=float(readout_time_ms) * 1e-3,
system=system,
)
adc = make_adc(
num_samples=n_read,
duration=readout.flat_time,
delay=readout.rise_time + system.adc_dead_time,
system=system,
)
readout_prephaser = make_trapezoid(channel="x", area=-0.5 * readout_width, duration=1e-3, system=system)
readout_rewinder = make_trapezoid(channel="x", area=-0.5 * readout_width, duration=1e-3, system=system)
pre_readout_duration = (
readout_prephaser.delay
+ readout_prephaser.rise_time
+ readout_prephaser.flat_time
+ readout_prephaser.fall_time
)
readout_duration = readout.delay + readout.rise_time + readout.flat_time + readout.fall_time
ky_values = (np.arange(n_phase) - 0.5 * (n_phase - 1)) * delta_k
for te_ms in echo_times_ms:
te_s = float(te_ms) * 1e-3
if te_s <= 5e-3:
raise ValueError("Echo times must exceed the RF and gradient block durations.")
rf_center_delay = max(te_s / 2.0 - rf90.shape_dur / 2.0 - rf180.shape_dur / 2.0, 1e-4)
readout_center_delay = max(
te_s / 2.0 - rf180.shape_dur / 2.0 - 0.5 * (pre_readout_duration + readout_duration),
1e-4,
)
for ky in ky_values:
phase_prephaser = make_trapezoid(channel="y", area=float(ky), duration=1e-3, system=system)
phase_rewinder = make_trapezoid(channel="y", area=float(-ky), duration=1e-3, system=system)
sequence.add_block(rf90)
sequence.add_block(make_delay(rf_center_delay))
sequence.add_block(rf180)
sequence.add_block(make_delay(readout_center_delay))
sequence.add_block(readout_prephaser, phase_prephaser)
sequence.add_block(readout, adc)
sequence.add_block(readout_rewinder, phase_rewinder)
recovery_delay = max(float(tr_ms) * 1e-3 - te_s - 10e-3, 1e-4)
sequence.add_block(make_delay(recovery_delay))
seq_path.parent.mkdir(parents=True, exist_ok=True)
sequence.write(str(seq_path))
def simulate_t2_images_from_seq(
seq_path: Path,
phantom_fields: dict[str, jnp.ndarray],
*,
noise_std: float,
seed: int,
) -> tuple[np.ndarray, np.ndarray]:
info = read_pulseq(seq_path)
echo_times = np.asarray(info.normalized_metadata.echo_times, dtype=np.float32)
if echo_times.ndim == 0:
echo_times = echo_times[None]
if echo_times.size == 0:
raise ValueError("Pulseq sequence did not provide echo times for T2 simulation.")
model = make_t2_se_model(scale=1.0)
clean = model.model_apply(
phantom_fields,
None,
{"TE": jnp.asarray(echo_times, dtype=jnp.float32)},
_allow_direct=True,
)
rng = np.random.default_rng(seed)
noisy = np.asarray(clean) + noise_std * rng.standard_normal(np.asarray(clean).shape).astype(np.float32)
return noisy.astype(np.float32), echo_times
def simulate_t2_kspace(images: np.ndarray) -> np.ndarray:
return np.asarray(cartesian_fft(np.asarray(images), axes=(-2, -1)), dtype=np.complex64)
plt.rcParams.update({
"figure.dpi": 110,
"savefig.dpi": 180,
"axes.spines.top": False,
"axes.spines.right": False,
"font.size": 10,
})
Generate a Cartesian Pulseq sequence¶
The helper below writes a line-readout spin-echo sequence with one full Cartesian readout per phase-encoding line and one complete k-space traversal per echo time. The important definitions for MRax are TE, TR, Matrix, and FOV.
[2]:
output_dir = Path.cwd() / 'tmp' / 'pulseq_t2_notebook'
output_dir.mkdir(parents=True, exist_ok=True)
seq_path = output_dir / 't2_mapping_demo.seq'
nx = 20
ny = 20
echo_times_ms = [12.0, 24.0, 36.0, 48.0, 72.0, 96.0]
tr_ms = 1500.0
write_multi_echo_spin_echo_seq(
seq_path,
echo_times_ms,
tr_ms=tr_ms,
matrix_shape=(nx, ny),
)
info = read_pulseq(seq_path)
print(json.dumps({
'sequence_kind': info.sequence_kind,
'spatial_shape': info.spatial_shape,
'adc_counts_head': list(info.adc_counts[:4]),
'echo_times_ms': list(np.asarray(info.normalized_metadata.echo_times, dtype=float)),
}, indent=2))
{
"sequence_kind": "cartesian",
"spatial_shape": [
20,
20
],
"adc_counts_head": [
20,
20,
20,
20
],
"echo_times_ms": [
12.0,
24.0,
36.0,
48.0,
72.0,
96.0
]
}
Build a synthetic T2 phantom and simulate k-space¶
The signal model uses the TE values parsed from the .seq file, so the import path and the simulation path stay aligned. The images are transformed to Cartesian k-space with the centered FFT helper from MRax.
[3]:
truth = _build_t2_phantom(nx, ny)
truth_images, echo_times_from_seq = simulate_t2_images_from_seq(
seq_path,
truth,
noise_std=0.01,
seed=0,
)
kspace = simulate_t2_kspace(truth_images)
print(
f"images shape={truth_images.shape}, kspace shape={kspace.shape}, "
f"echoes={echo_times_from_seq.tolist()}"
)
images shape=(6, 20, 20), kspace shape=(6, 20, 20), echoes=[12.0, 24.0, 36.0, 48.0, 72.0, 96.0]
Import the experiment through kspace= and fit the T2 model¶
Here the Pulseq importer uses the sequence definitions and ADC trajectory to classify the acquisition as Cartesian. Because the dataset is imported from k-space only, the preview image in DataSet.data is reconstructed internally with the standard Cartesian inverse FFT.
[4]:
experiment, dataset, model, metadata = load_pulseq_experiment(
seq_path,
kspace=kspace,
spatial_shape=(nx, ny),
model_map_by_type={'mse': lambda: make_t2_se_model(scale=1.0)},
)
fitted_fields, losses = run_fit(
experiment,
model,
dataset,
num_steps=250,
step_size=0.05,
)
summary = {
'exp_type': experiment.exp_type,
'sequence_kind': metadata['pulseq']['sequence_kind'],
'imported_te_ms': list(np.asarray(experiment.observables['TE'].values, dtype=float)),
'recon_rmse': float(np.sqrt(np.mean((np.asarray(dataset.data) - truth_images) ** 2))),
't2_rmse_ms': float(np.sqrt(np.mean((np.asarray(fitted_fields['t2']) - np.asarray(truth['t2'])) ** 2))),
'final_loss': float(losses[-1]),
}
summary
[4]:
{'exp_type': 'mse',
'sequence_kind': 'cartesian',
'imported_te_ms': [np.float64(12.0),
np.float64(24.0),
np.float64(36.0),
np.float64(48.0),
np.float64(72.0),
np.float64(96.0)],
'recon_rmse': 6.385817385989867e-08,
't2_rmse_ms': 5.458102703094482,
'final_loss': 0.00020488668815232813}

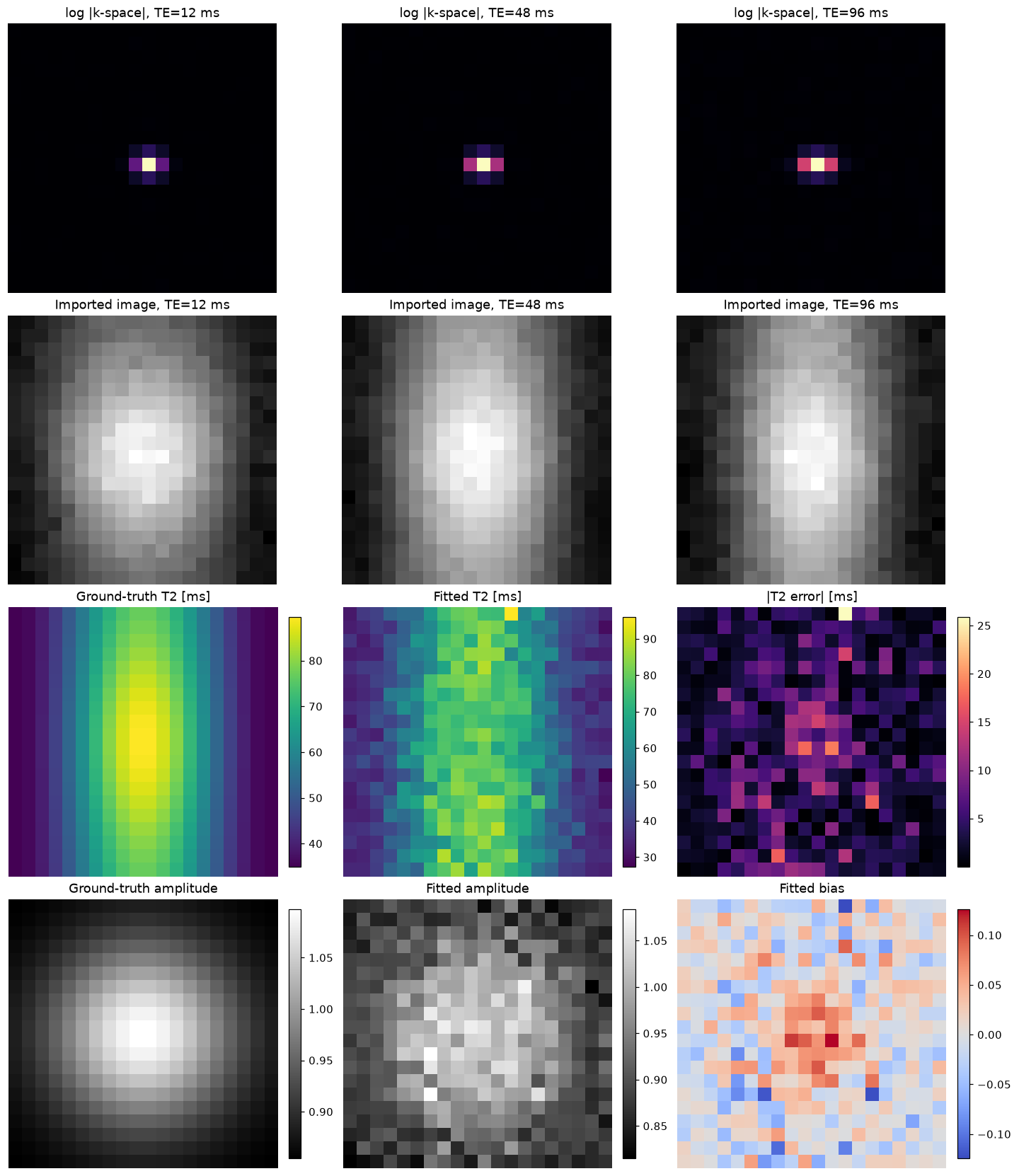

Visualize k-space, imported images, and fitted maps¶
The first row shows representative k-space magnitudes for early, middle, and late echoes. The second row shows the reconstructed image stack imported by MRax. The last two rows compare the ground-truth and fitted parameter maps.
[5]:
imported_images = np.asarray(dataset.data, dtype=np.float32)
imported_kspace = np.asarray(dataset.kspace, dtype=np.complex64)
truth_t2 = np.asarray(truth["t2"], dtype=np.float32)
truth_amp = np.asarray(truth["amplitude"], dtype=np.float32)
fit_t2 = np.asarray(fitted_fields["t2"], dtype=np.float32)
fit_amp = np.asarray(fitted_fields["amplitude"], dtype=np.float32)
fit_bias = np.asarray(fitted_fields["bias"], dtype=np.float32)
frame_indices = [0, len(echo_times_from_seq) // 2, len(echo_times_from_seq) - 1]
fig, axes = plt.subplots(4, 3, figsize=(13, 15), constrained_layout=True)
for col, frame_idx in enumerate(frame_indices):
axes[0, col].imshow(np.log1p(np.abs(imported_kspace[frame_idx])), cmap="magma")
axes[0, col].set_title(f"log |k-space|, TE={echo_times_from_seq[frame_idx]:.0f} ms")
axes[0, col].axis("off")
axes[1, col].imshow(imported_images[frame_idx], cmap="gray")
axes[1, col].set_title(f"Imported image, TE={echo_times_from_seq[frame_idx]:.0f} ms")
axes[1, col].axis("off")
map_specs = [
(truth_t2, "Ground-truth T2 [ms]", "viridis"),
(fit_t2, "Fitted T2 [ms]", "viridis"),
(np.abs(fit_t2 - truth_t2), "|T2 error| [ms]", "magma"),
(truth_amp, "Ground-truth amplitude", "gray"),
(fit_amp, "Fitted amplitude", "gray"),
(fit_bias, "Fitted bias", "coolwarm"),
]
for panel_idx, (image, title, cmap) in enumerate(map_specs):
row = 2 + panel_idx // 3
col = panel_idx % 3
artist = axes[row, col].imshow(image, cmap=cmap)
axes[row, col].set_title(title)
axes[row, col].axis("off")
fig.colorbar(artist, ax=axes[row, col], fraction=0.046, pad=0.04)
figure_path = output_dir / "pulseq_import_demo_overview.png"
fig.savefig(figure_path, dpi=180, bbox_inches="tight")
plt.show()
print(f"Saved overview figure to {figure_path}")
Saved overview figure to /tmp/mrax-notebook-smoke/tmp/pulseq_t2_notebook/pulseq_import_demo_overview.png
Save a compact result bundle¶
The notebook keeps the same artifact pattern as the script so the outputs can be inspected outside Jupyter as well.
[6]:
np.savez_compressed(
output_dir / 'pulseq_import_demo_results.npz',
kspace=imported_kspace,
images=imported_images,
echo_times_ms=np.asarray(echo_times_from_seq, dtype=np.float32),
truth_amplitude=truth_amp,
truth_t2=truth_t2,
fit_amplitude=fit_amp,
fit_t2=fit_t2,
fit_bias=fit_bias,
losses=np.asarray(losses, dtype=np.float32),
)
with (output_dir / 'pulseq_import_demo_summary.json').open('w', encoding='utf-8') as f:
json.dump(summary, f, indent=2)
print(output_dir)
/tmp/mrax-notebook-smoke/tmp/pulseq_t2_notebook
